Leader Chuck

EXTRA LONG JAW STROKE POWER CHUCK AG-3L-12-A8

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M100 X 2

0mm with a Ø50mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M16 SHCS on 30mm centres. T nut slot width 21mm. Also included are 3xM8 mounting bolts on a 190

0mm PCD

EXTRA LONG JAW STROKE POWER CHUCK AG-3L-12-A8

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M100 X 2,0mm with a Ø50mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M16 SHCS on 30mm centres. T nut slot width 21mm. Also included are 3xM8 mounting bolts on a 190,0mm PCD

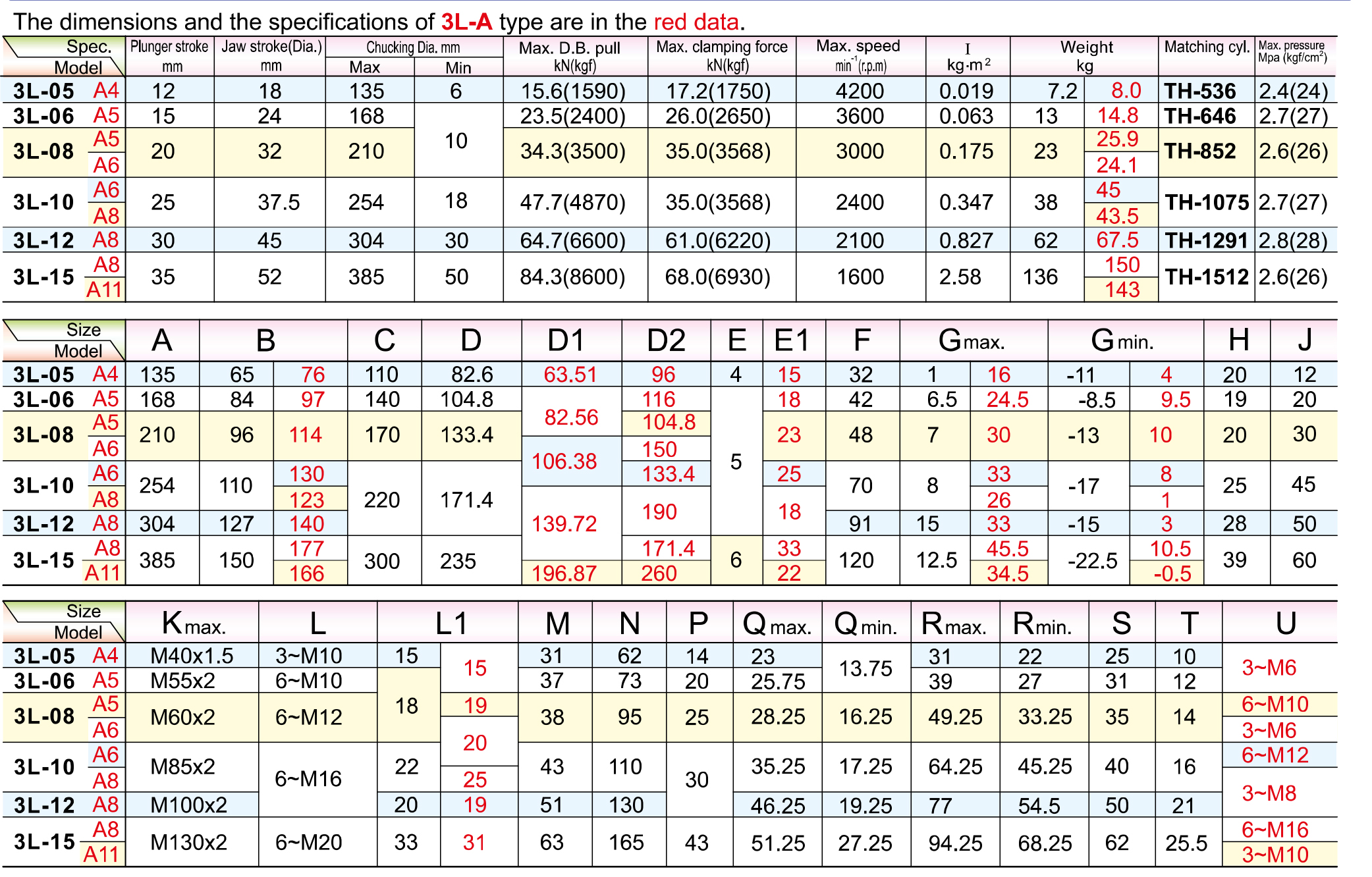

Chuck Size Ø304mm
3 of Jaws
Through Hole Ø91mm
Jaw Stroke Ø45,0mm
A8
Maximum Speed 2100rpm
Wedge Stroke 30mm
Maximum Clamping Diameter 304mm
Minimum Clamping Diameter 30mm
Maximum Drawbar Pull 64,7kN (6600kgf)
Maximum Clamping Force 61,0kN (6220kgf)
Moment of Inertia 0,827kg-m²
Maximum Pressure 2,8MPa (28Kg/cm²)
Weight 67.5Kg

Matching Cylinder TH-1291
Matching Hard Jaws HJ12H
Matching Soft Jaws SJ12H
Matching T Nuts TN1-12
