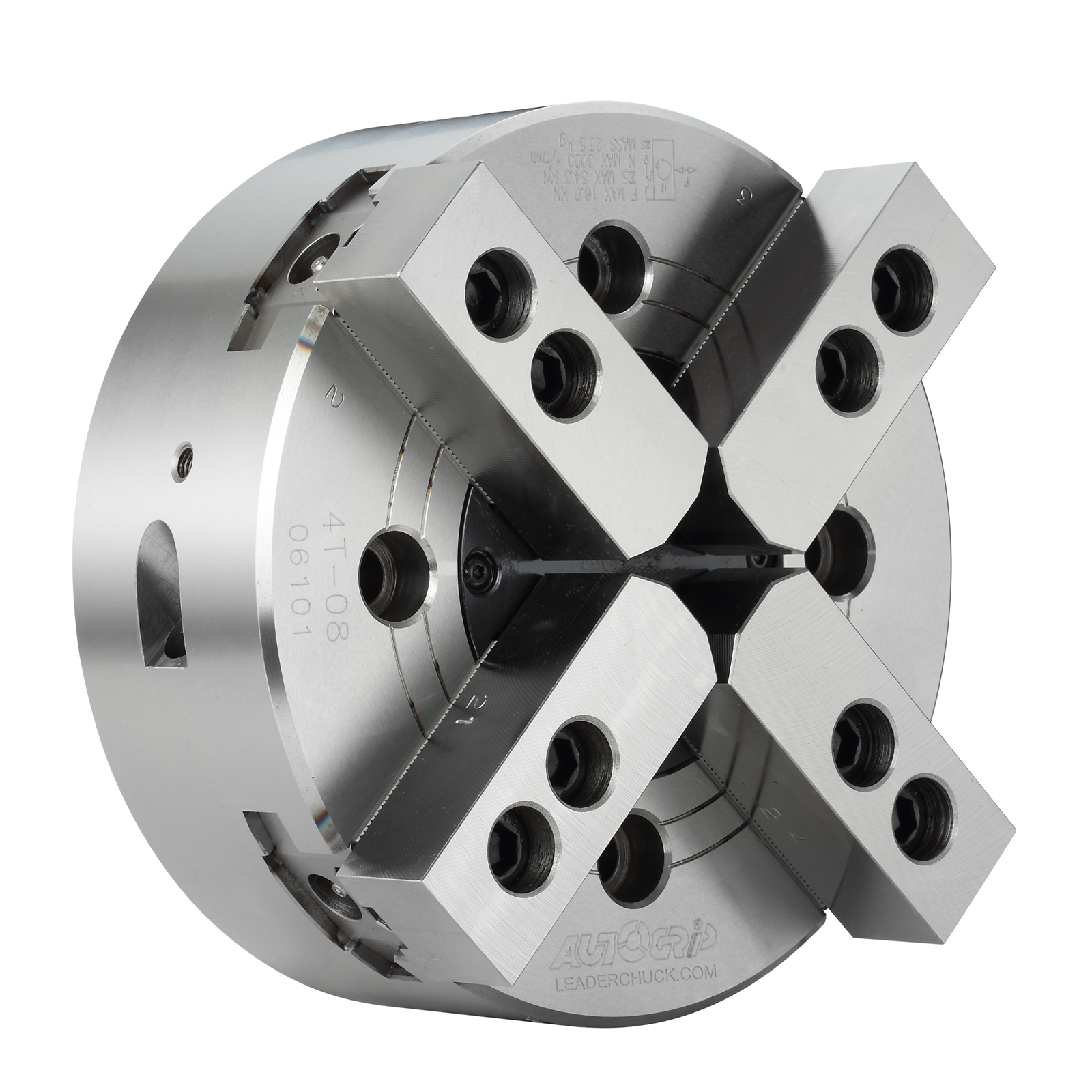

FOUR-JAW TWO MOTION TYPE POWER CHUCK AG-4T-08

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a two + two jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M14 X 2

0mm with a Ø66mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M12 SHCS on 25mm. T nut slot width 14mm . Also included are 4xM12 mounting bolts on a 133

4mm PCD

FOUR-JAW TWO MOTION TYPE POWER CHUCK AG-4T-08

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a two + two jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M14 X 2,0mm with a Ø66mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M12 SHCS on 25mm. T nut slot width 14mm . Also included are 4xM12 mounting bolts on a 133,4mm PCD

Chuck Size Ø210mm
2+2 of Jaws
Through Hole Ø0mm
Jaw Stroke 13.6mm
Ø170mmh6
Maximum Speed 3000rpm
Wedge Stroke 17mm
Maximum Clamping Diameter 210mm
Minimum Clamping Diameter 24mm
Maximum Drawbar Pull 16,0kN (1630kgf)
Maximum Clamping Force 54,3kN (5540kgf)
Moment of Inertia 0,15kg-m²
Maximum Pressure 1,7MPa (17,0Kg/cm²)
Weight 23.2Kg

Matching Cylinder RD-120(N)
Matching Hard Jaws HJ08
Matching Soft Jaws SJ08
Matching T Nuts TN1-08
