LARGE THROUGH HOLE POWER CHUCK AG-3H-06B

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M60 X 2

0mm with a Ø20mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M10 SHCS on 20mm centres. T nut slot width12mm. Also included are 6xM10 mounting bolts on a 104

8mm PCD

LARGE THROUGH HOLE POWER CHUCK AG-3H-06B

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M60 X 2,0mm with a Ø20mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M10 SHCS on 20mm centres. T nut slot width12mm. Also included are 6xM10 mounting bolts on a 104,8mm PCD

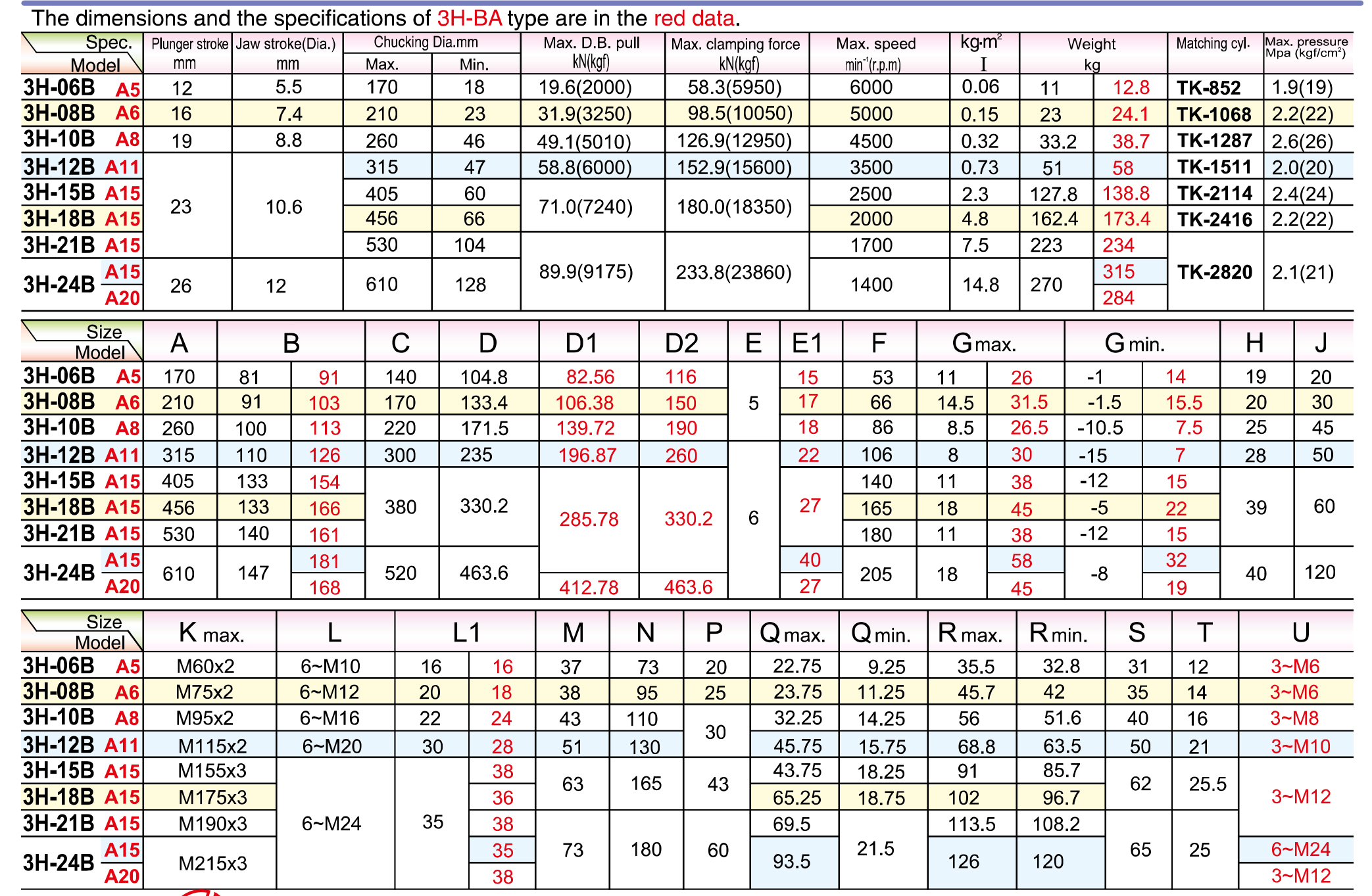

Chuck Size Ø170mm
3 of Jaws
Through Hole Ø53mm
Jaw Stroke Ø5,5mm
Ø140mmh6
Maximum Speed 6000rpm
Wedge Stroke 12mm
Maximum Clamping Diameter 170mm
Minimum Clamping Diameter 18mm
Maximum Drawbar Pull 19,6kN (2000kgf)
Maximum Clamping Force 58,3kN (5950kgf)
Moment of Inertia 0,06kg-m²
Maximum Pressure 1,9MPa (19Kg/cm²)
Weight 11.0Kg

Matching Cylinder TK-852
Matching Hard Jaws HJ06
Matching Soft Jaws SJ06
Matching T Nuts TN1-06
