LARGE THROUGH HOLE POWER CHUCK AG-3H-08B

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M75 X 2

0mm with a Ø30mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M12 SHCS on 25mm centres. T nut slot width 14mm. Also included are 6xM12 mounting bolts on a 133

4mm PCD

LARGE THROUGH HOLE POWER CHUCK AG-3H-08B

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M75 X 2,0mm with a Ø30mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M12 SHCS on 25mm centres. T nut slot width 14mm. Also included are 6xM12 mounting bolts on a 133,4mm PCD

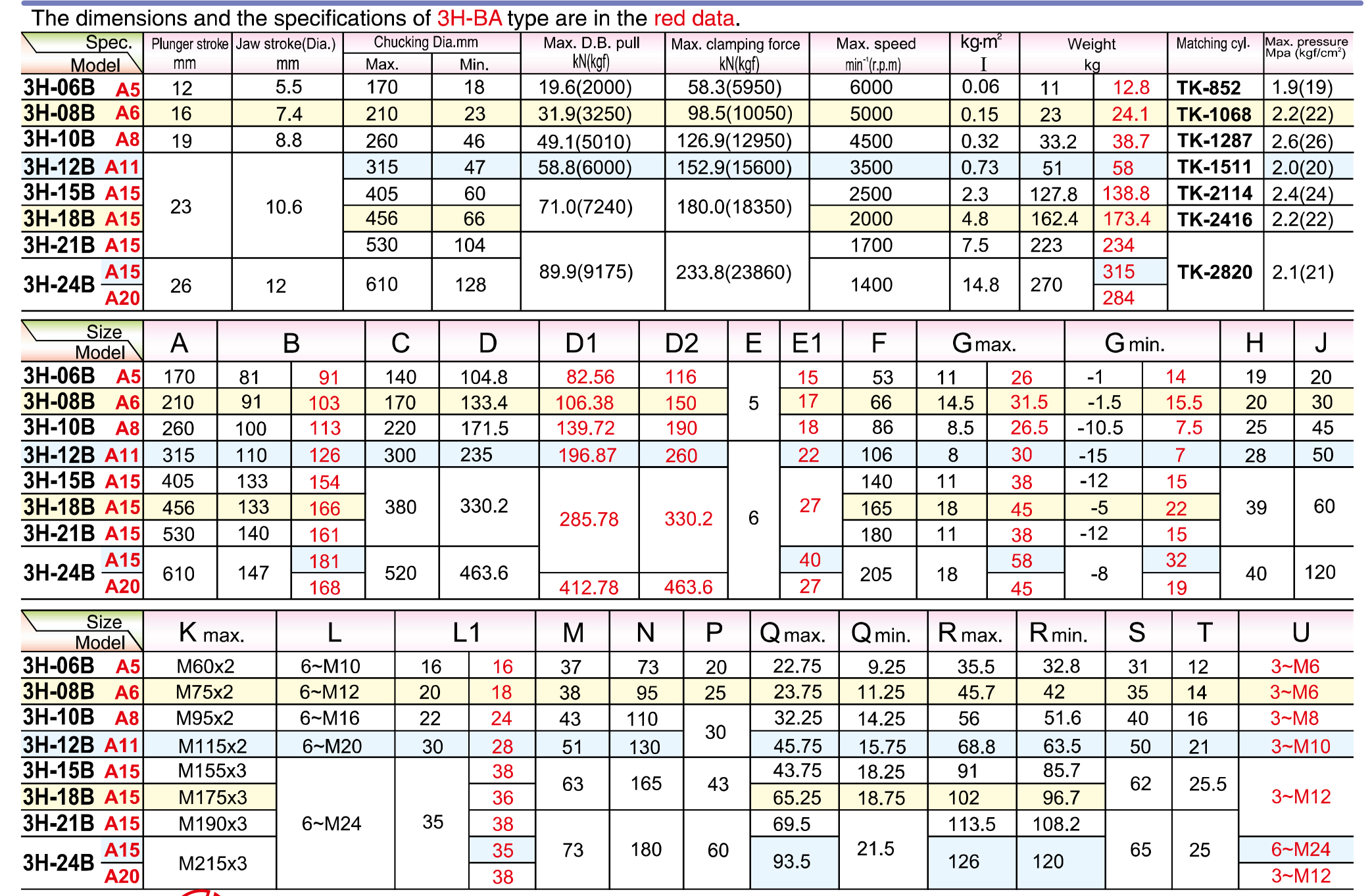

Chuck Size Ø210mm
3 of Jaws
Through Hole Ø66mm
Jaw Stroke Ø7,4mm
Ø170mmh6
Maximum Speed 5000rpm
Wedge Stroke 16mm
Maximum Clamping Diameter 210mm
Minimum Clamping Diameter 23mm
Maximum Drawbar Pull 31,9kN (3250kgf)
Maximum Clamping Force 98,5kN (10050kgf)
Moment of Inertia 0,15kg-m²
Maximum Pressure 2,2MPa (22Kg/cm²)
Weight 23.0Kg

Matching Cylinder TK-1068
Matching Hard Jaws HJ08
Matching Soft Jaws SJ08
Matching T Nuts TN1-08
