LONG JAW STROKE POWER CHUCK AG-3M-215

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M30 X 3

5mm with a Ø60mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M20 SHCS on 43mm. T nut slot width 25

5mm . Also included are 6x M20 mounting bolts on a 235

0mm PCD

LONG JAW STROKE POWER CHUCK AG-3M-215

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M30 X 3,5mm with a Ø60mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M20 SHCS on 43mm. T nut slot width 25,5mm . Also included are 6x M20 mounting bolts on a 235,0mm PCD

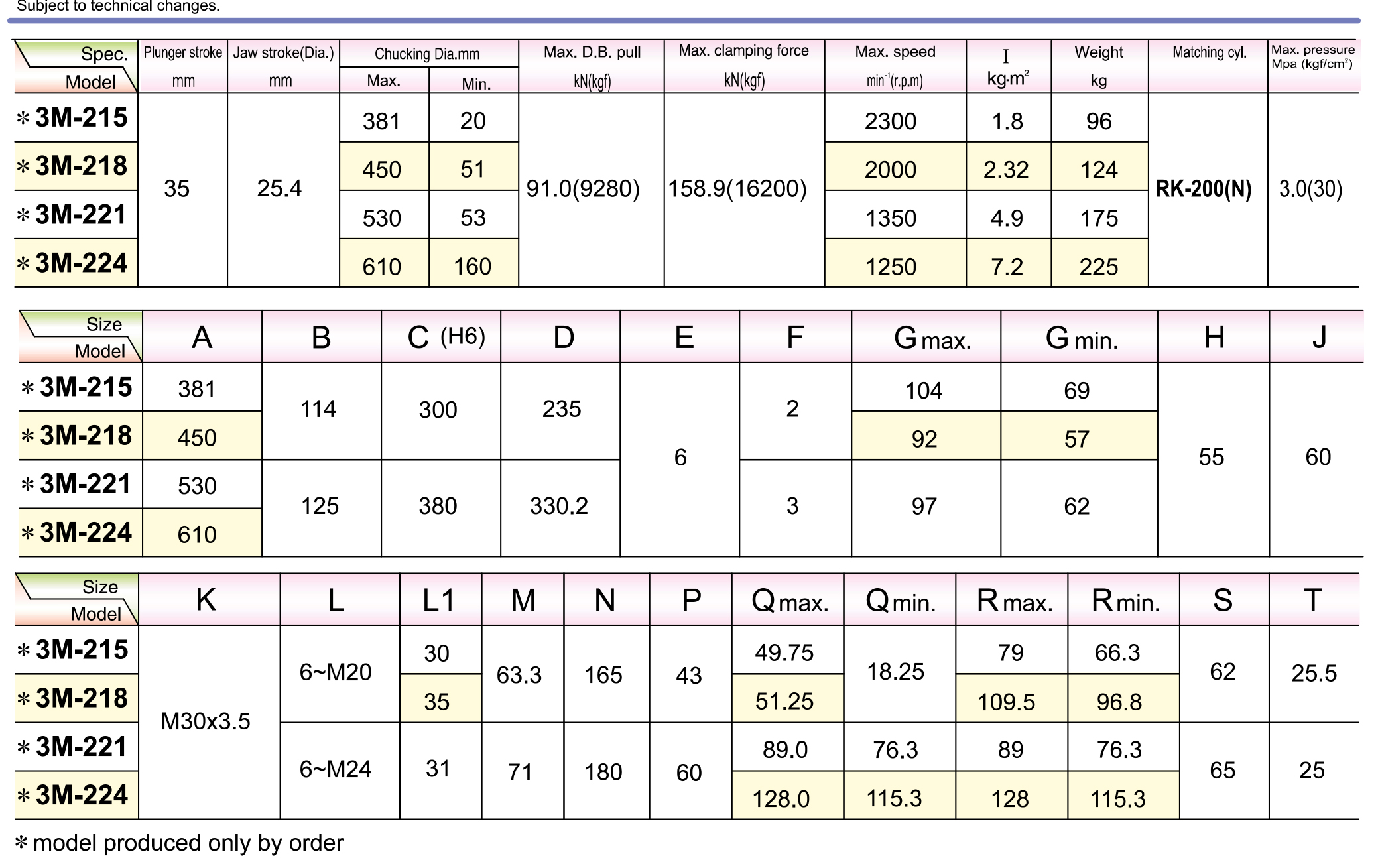

Chuck Size Ø381mm
3 of Jaws
Through Hole Ø0mm
Jaw Stroke Ø25,4mm
Ø300mmh6
Maximum Speed 2300rpm
Wedge Stroke 30mm
Maximum Clamping Diameter 381mm
Minimum Clamping Diameter 20mm
Maximum Drawbar Pull 91,0kN (9280kgf)
Maximum Clamping Force 158,9kN (16200kgf)
Moment of Inertia 1,8kg-m²
Maximum Pressure 3,0MPa (30Kg/cm²)
Weight 96Kg

Matching Cylinder RK-200(N)
Matching Hard Jaws HJ15P
Matching Soft Jaws SJ15P
Matching T Nuts TN1-15
