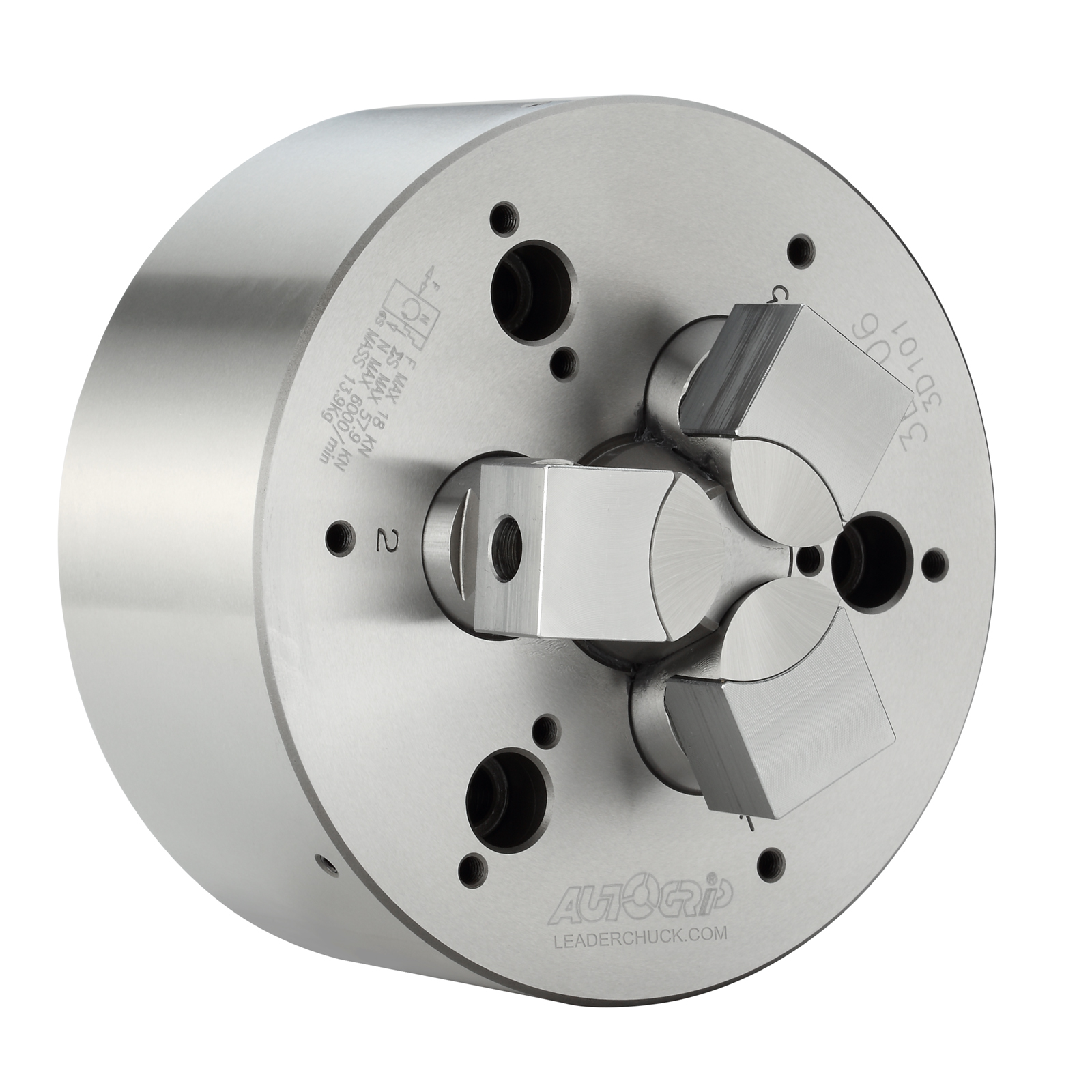

PULL LOCK POWER CHUCK AG-3U-204

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a threejaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M24 X 1

5mm with a Ø42mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M6 SHCS on 0mm. T nut slot width N/A. Also included are 3x M10 mounting bolts on a 70

6mm PCD

PULL LOCK POWER CHUCK AG-3U-204

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a threejaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M24 X 1,5mm with a Ø42mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M6 SHCS on 0mm. T nut slot width N/A. Also included are 3x M10 mounting bolts on a 70,6mm PCD

Chuck Size Ø110mm
3 of Jaws
Through Hole Ø30mm
Jaw Stroke Ø3,0mm
Ø70mmh6
Maximum Speed 8000rpm
Wedge Stroke 6mm
Maximum Clamping Diameter 60mm
Minimum Clamping Diameter 10mm
Maximum Drawbar Pull 10,0kN (1020kgf)
Maximum Clamping Force 28,4kN (2900kgf)
Moment of Inertia 0,005kg-m²
Maximum Pressure 2,7MPa (27Kg/cm²)
Weight 3.9Kg

Matching Cylinder RK-75(N)
Matching Hard Jaws N/A
Matching Soft Jaws SJ3U-204
Matching T Nuts N/A
