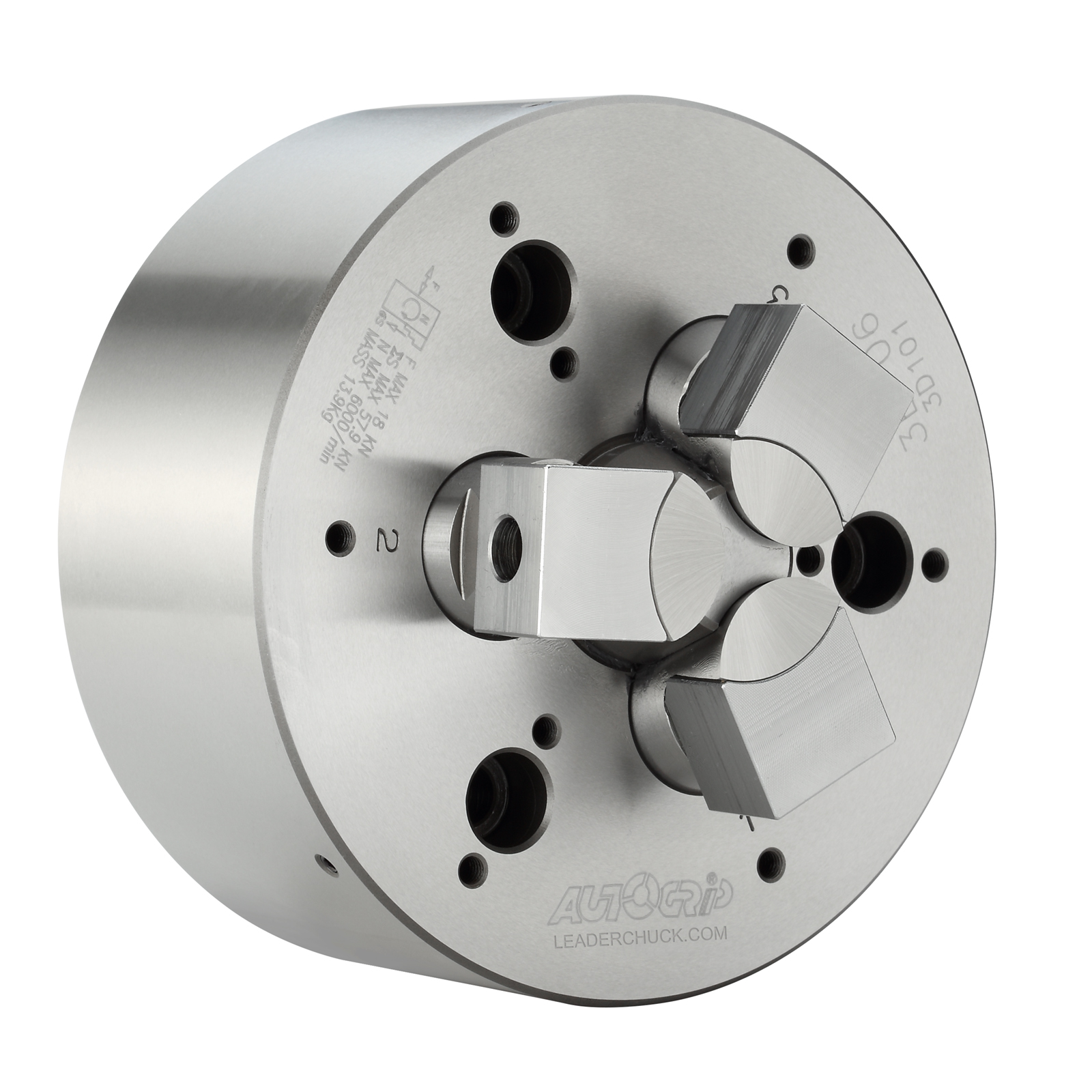

PULL LOCK POWER CHUCK AG-3U-205

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M28 X 1

5mm with a Ø50mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M8 SHCS on 0mm. T nut slot width N/A. Also included are 3x M10 mounting bolts on a 82

6mm PCD

PULL LOCK POWER CHUCK AG-3U-205

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M28 X 1,5mm with a Ø50mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M8 SHCS on 0mm. T nut slot width N/A. Also included are 3x M10 mounting bolts on a 82,6mm PCD

Chuck Size Ø135mm
3 of Jaws
Through Hole Ø35mm
Jaw Stroke Ø3,0mm
Ø110mmh6
Maximum Speed 8000rpm
Wedge Stroke 6mm
Maximum Clamping Diameter 84mm
Minimum Clamping Diameter 15mm
Maximum Drawbar Pull 13,9kN (1410kgf)
Maximum Clamping Force 39,7kN (4050kgf)
Moment of Inertia 0,012kg-m²
Maximum Pressure 2,0MPa (20Kg/cm²)
Weight 6.8Kg

Matching Cylinder RK-100(N)
Matching Hard Jaws N/A
Matching Soft Jaws SJ3U-205
Matching T Nuts N/A
