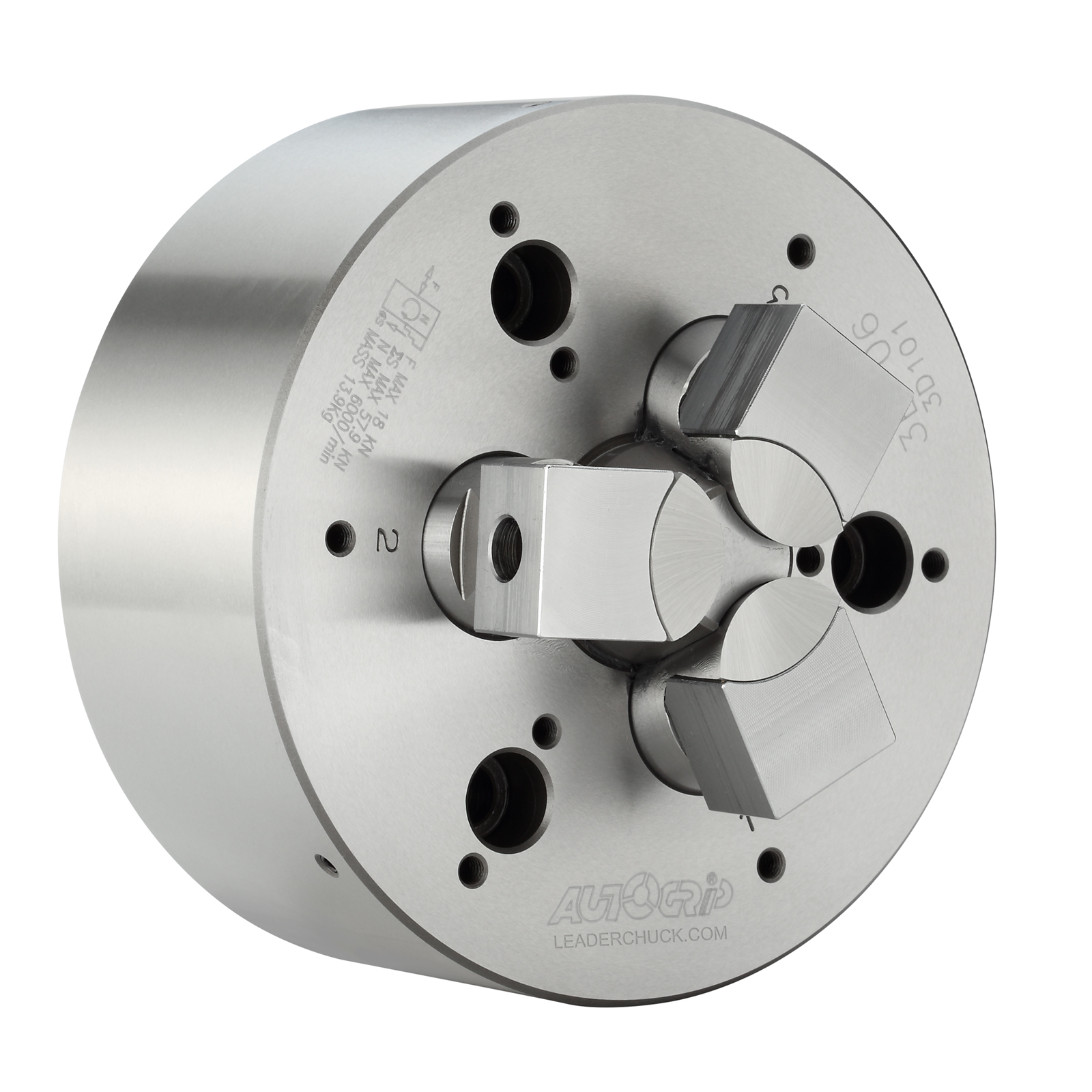

PULL LOCK POWER CHUCK AG-3U-212

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M92 X 2

0mm with a Ø135mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M14 SHCS on 0mm. T nut slot width N/A. Also included are 3x M16 mounting bolts on a 171

4mm PCD

PULL LOCK POWER CHUCK AG-3U-212

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M92 X 2,0mm with a Ø135mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M14 SHCS on 0mm. T nut slot width N/A. Also included are 3x M16 mounting bolts on a 171,4mm PCD

Chuck Size Ø304mm
3 of Jaws
Through Hole Ø100mm
Jaw Stroke Ø5,0mm
Ø220mmh6
Maximum Speed 3600rpm
Wedge Stroke 10mm
Maximum Clamping Diameter 210mm
Minimum Clamping Diameter 81mm
Maximum Drawbar Pull 35,0kN (3570kgf)
Maximum Clamping Force 100,7kN (10100kgf)
Moment of Inertia 0,68kg-m²
Maximum Pressure 3,1MPa (31Kg/cm²)
Weight 63.0Kg

Matching Cylinder RK-125(N)
Matching Hard Jaws N/A
Matching Soft Jaws SJ3U-212
Matching T Nuts N/A
