STANDARD JAW STROKE POWER CHUCK AG-2P-08-A06

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a two jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M20 X 2

5mm with a Ø38mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M12 SHCS on 25mm centres. T nut slot width 14mm . Also included are 3xM6 mounting bolts on a 150

0mm PCD

STANDARD JAW STROKE POWER CHUCK AG-2P-08-A06

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a two jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M20 X 2,5mm with a Ø38mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M12 SHCS on 25mm centres. T nut slot width 14mm . Also included are 3xM6 mounting bolts on a 150,0mm PCD

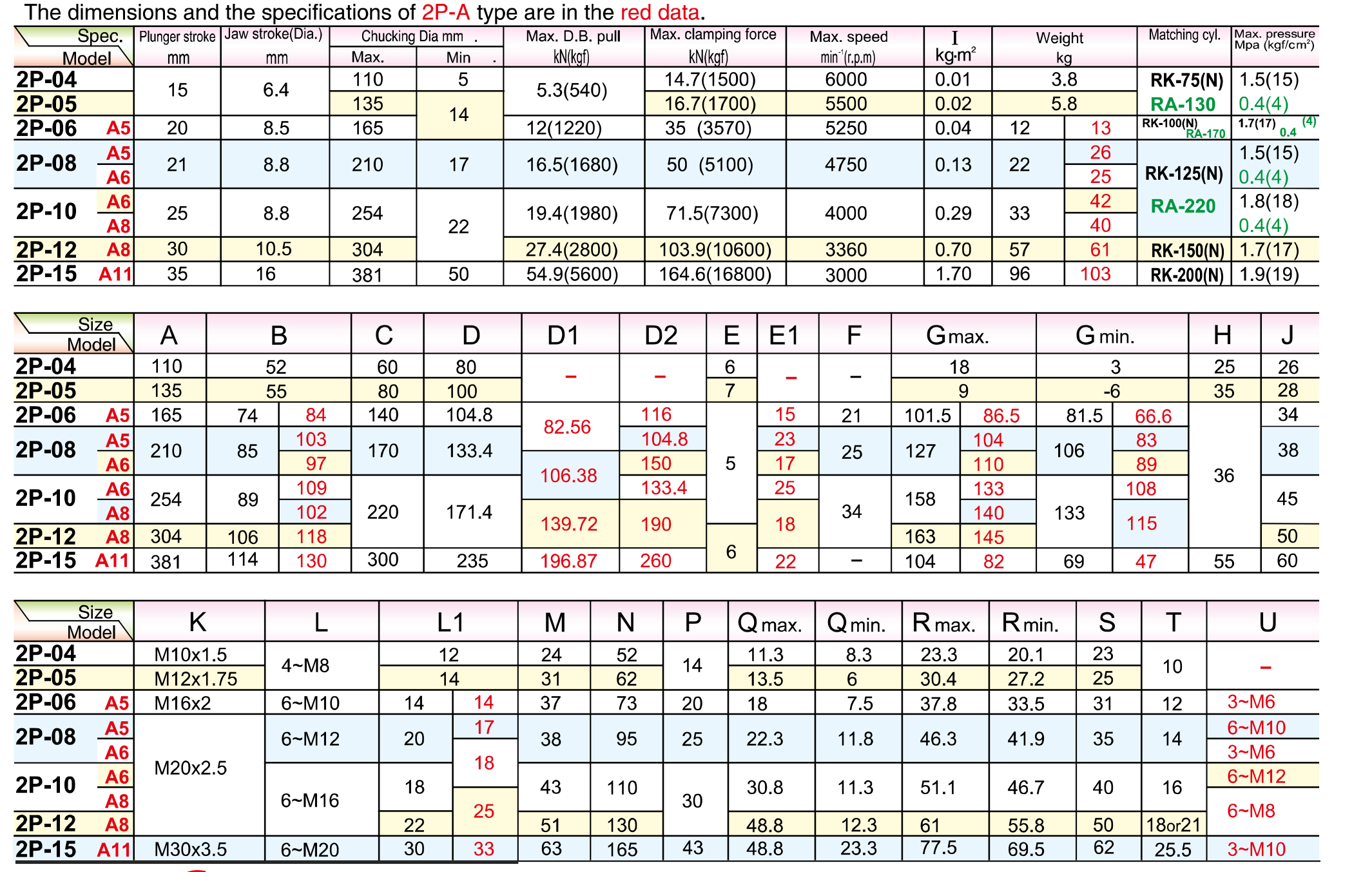

Chuck Size Ø210mm
2 of Jaws
Through Hole Ø25mm
Jaw Stroke Ø8,8mm
A6
Maximum Speed 4750rpm
Wedge Stroke 21mm
Maximum Clamping Diameter 210mm
Minimum Clamping Diameter 17mm
Maximum Drawbar Pull 16,5kN (1680kgf)
Maximum Clamping Force 50,0kN (5100kgf)
Moment of Inertia 0,13kg-m²
Maximum Pressure 1,5MPa (15Kg/cm²)
Weight 25.0Kg

Matching Cylinder RK-125(N) or RA-220
Matching Hard Jaws HJ08
Matching Soft Jaws SJ08
Matching T Nuts TN1-08
