THROUGH-HOLE POWER CHUCK AG-4H-06

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a four jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M55 X 2

0mm with a Ø20mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M10 SHCS on 20mm centres. T nut slot width 12mm. Also included are 4x M10 mounting bolts on a 104

8mm PCD

THROUGH-HOLE POWER CHUCK AG-4H-06

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a four jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M55 X 2,0mm with a Ø20mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M10 SHCS on 20mm centres. T nut slot width 12mm. Also included are 4x M10 mounting bolts on a 104,8mm PCD

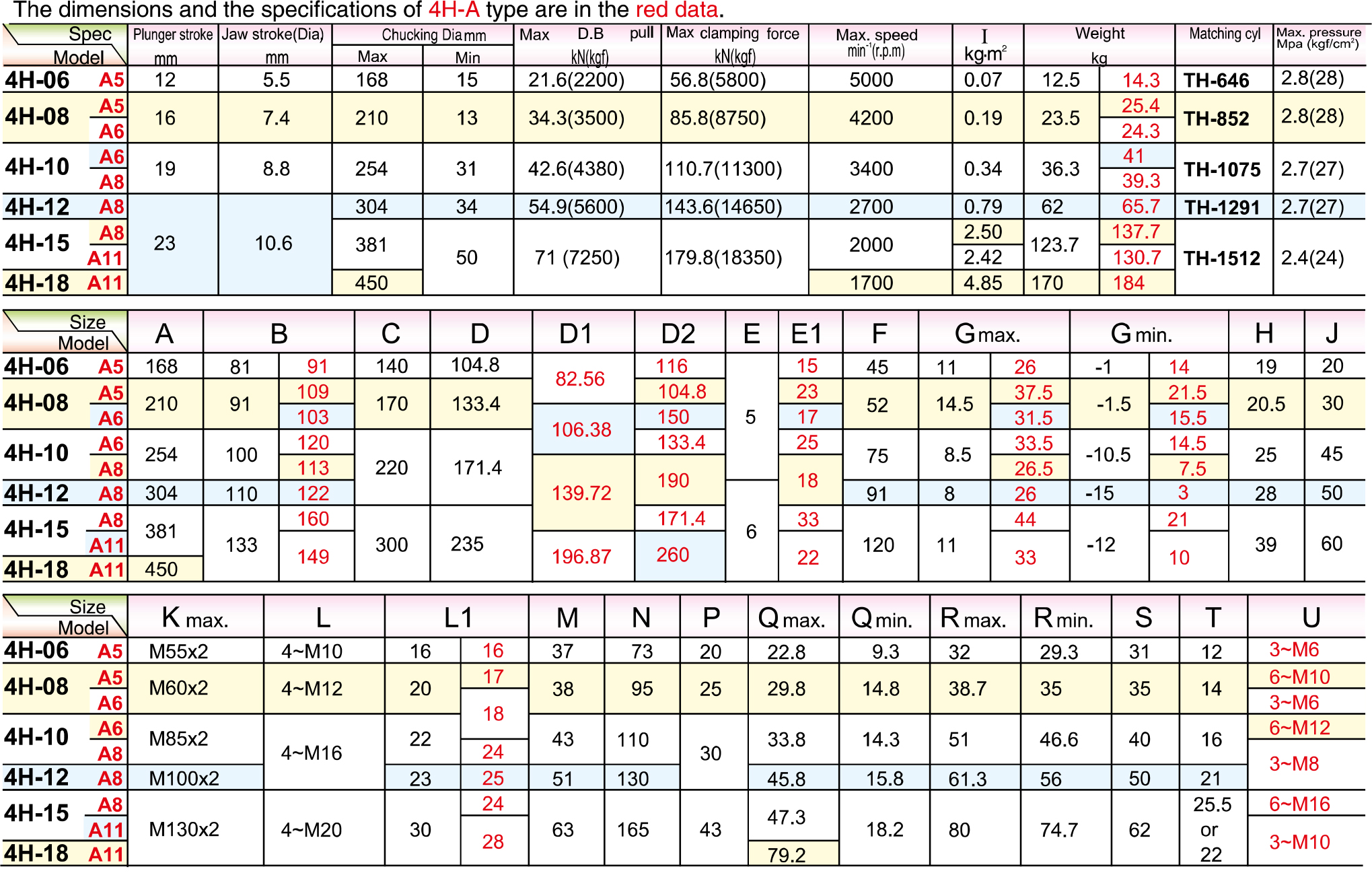

Chuck Size Ø168mm
4 of Jaws
Through Hole Ø45mm
Jaw Stroke Ø5,5mm
Ø140mmh6
Maximum Speed 5000rpm
Wedge Stroke 12mm
Maximum Clamping Diameter 168mm
Minimum Clamping Diameter 15mm
Maximum Drawbar Pull 21,6kN (2200kgf)
Maximum Clamping Force 56,8kN (5800kgf)
Moment of Inertia 0,07kg-m²
Maximum Pressure 2,8MPa (28Kg/cm²)
Weight 12.5Kg

Matching Cylinder TH-646
Matching Hard Jaws HJ06
Matching Soft Jaws SJ06
Matching T Nuts TN1-06
