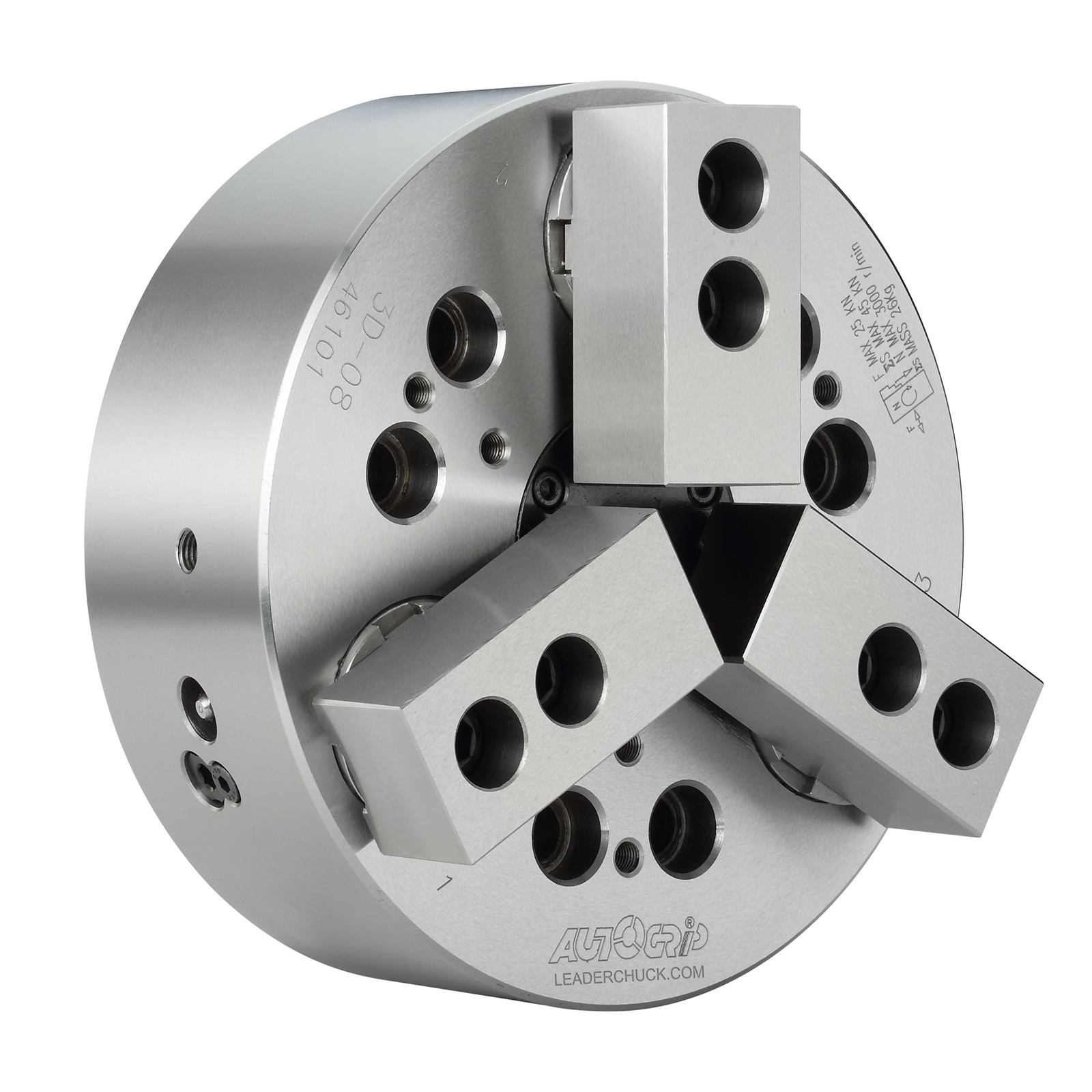

PULL LOCK POWER CHUCK AG-3D-04

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel

all mating surfaces are hardened

ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M10 with a Ø25mm pilot hole. Fitted with soft blank top jaws as standard

serrated 1

5mm x 60° drilled and counterbored for 2x M10 SHCS on 0mm. T nut slot width 8 x 8mm. Also included are 3x M10 mounting bolts on a 70

6mm PCD

PULL LOCK POWER CHUCK AG-3D-04

These chucks are constructed with high rigidity and high clamping accuracy. Manufactured from high grade alloy steel, all mating surfaces are hardened, ground and directly lubricated. This model is a three jaw wedge style power chuck with a large through hole They come with a blank drawtube connector nut threaded M10 with a Ø25mm pilot hole. Fitted with soft blank top jaws as standard, serrated 1,5mm x 60° drilled and counterbored for 2x M10 SHCS on 0mm. T nut slot width 8 x 8mm. Also included are 3x M10 mounting bolts on a 70,6mm PCD

Chuck Size Ø110mm
3 of Jaws
Through Hole Ø0mm
Jaw Stroke Ø5,0mm
Ø85mmh6
Maximum 3500rpm
Wedge Stroke 7mm
Maximum Clamping Diameter 110mm
Minimum Clamping Diameter 13mm
Maximum Drawbar Pull 6,0kN (612kgf)
Maximum Clamping Force 10,5kN (1070kgf)
Moment of Inertia 0,007kg-m²
Maximum Pressure 1,6MPa (16,5Kg/cm²)
Weight 4.5Kg

Matching Cylinder RK-75
Matching Hard Jaws N/A
Matching Soft Jaws SJ3D-04
Matching T Nuts N/A
