Leader Chuck

WMG-LB25200300LP

Laminated blocks and plates are silver brazed products with 3 mm of steel and 1 mm of brass laminations. Being solid pieces without bolts or tie-bars

they can be machined to practically any desired shape to suit one or multiple components. Laminated bars with longitudinal poles (laminations) can be cut into thin spacers or small adapter plates. Rectangular and circular laminated plates are typically used as adapter plates. These plates can be used to reduce the pole pitch of the chuck enabling the holding of small and thin components. Also available are plates and bars with transverse poles

rectangular and circular adapter plates and V-blocks with 90-degree prism - all with a standard thickness of 25 mm.

WMG-LB25200300LP

Laminated blocks and plates are silver brazed products with 3 mm of steel and 1 mm of brass laminations. Being solid pieces without bolts or tie-bars, they can be machined to practically any desired shape to suit one or multiple components. Laminated bars with longitudinal poles (laminations) can be cut into thin spacers or small adapter plates. Rectangular and circular laminated plates are typically used as adapter plates. These plates can be used to reduce the pole pitch of the chuck enabling the holding of small and thin components. Also available are plates and bars with transverse poles, rectangular and circular adapter plates and V-blocks with 90-degree prism - all with a standard thickness of 25 mm.

Model - WMG-LB25200300LP
Plate Length - 300mm
Plate Width - 200mm
Plate Height - 25mm
Brand Name - Walmag

Features and Applications

Walmag Magnetics laminated blocks and plates are silver brazed products with 3 mm of steel and 1 mm of brass laminations.
Being solid pieces without bolts or tie-bars, they can be machined to practically any desired shape to suit one or multiple components.
Also, our laminated bars with longitudinal poles (laminations) can be cut into thin spacers or small adapter plates.
Rectangular and circular laminated plates are typically used as adapter plates
Also, these plates can be used to reduce the pole pitch of the chuck enabling the holding of small and thin components

Product Range

Plates and bars with transverse poles

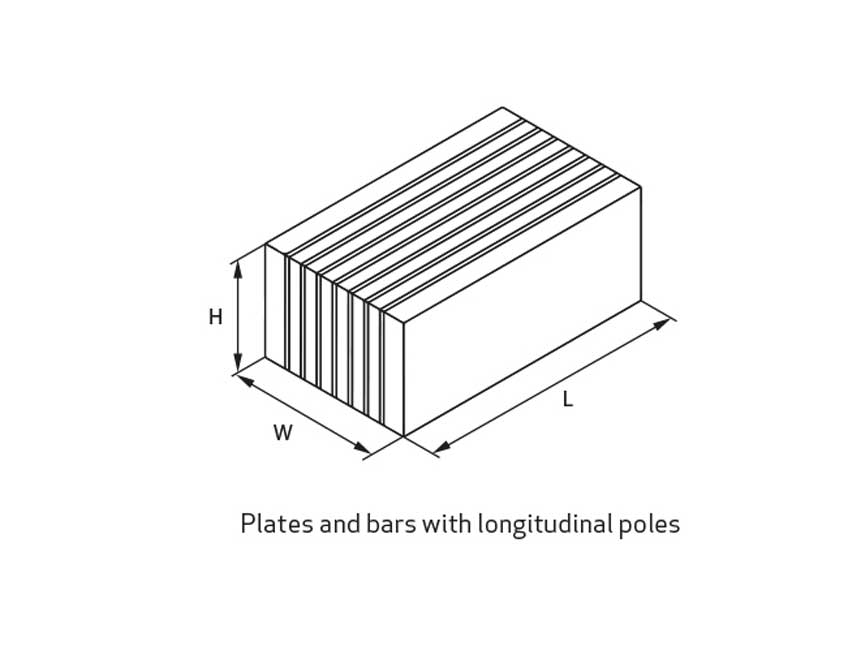

Bars with longitudinal poles
Rectangular and circular adapter plates
V-blocks with 90-degree prism
Standard thickness: 25 mm
